IBC information and ICS20 interface

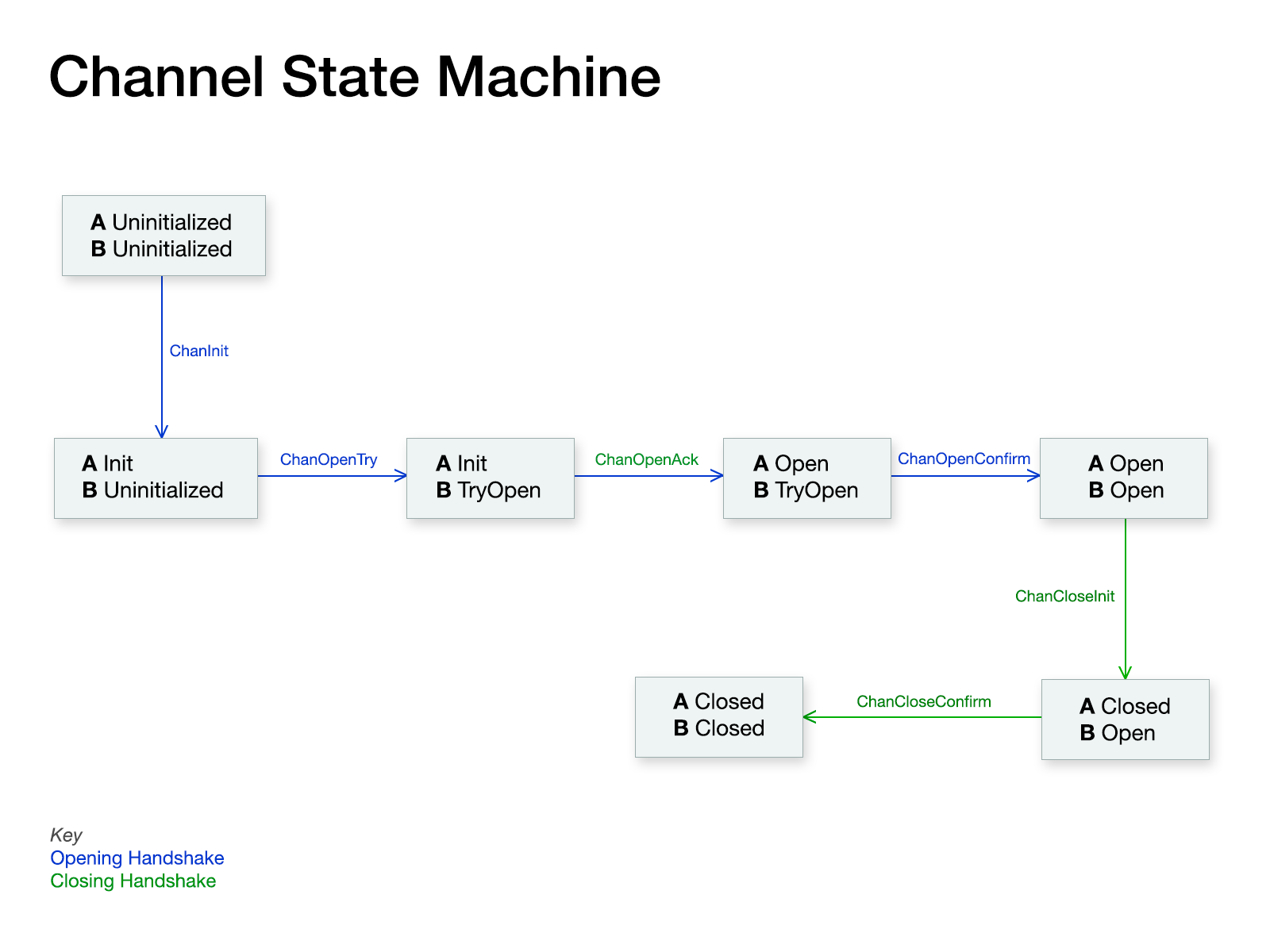

Channel lifecycle management
ICS20 interface
1. ink! interface
/// Token transfer. This allows us to transfer exactly one native token.
pub fn execute_transfer(
&self,
msg: TransferMsg,
amount: Amount,
sender: Addr,
) -> Result<Response, Error> ;
/// Return the port ID bound by this contract.
pub fn query_port(&self) -> PortResponse ;
2. PSP37 interface
(open branch ink! ERC-1155: Multi Token Standard for Substrate's contracts pallet)
/// Contract module that provides a basic implementation of multiple token types.
/// A single deployed contract can include any combination of fungible tokens,
/// non-fungible tokens, or other configurations (e.g., semi-fungible tokens).
#[openbrush::trait_definition]
pub trait PSP37 {
/// Returns the number of tokens of the token type `id` owned by `account`.
///
/// If `id` is `None`, it returns the total number of tokens owned by `owner`.
#[ink(message)]
fn balance_of(&self, owner: AccountId, id: Option<Id>) -> Balance;
/// Returns the total number of tokens of type `id` in the supply.
///
/// If `id` is `None`, it returns the total number of tokens.
#[ink(message)]
fn total_supply(&self, id: Option<Id>) -> Balance;
/// Returns the amount of `id` token that `owner` allows `operator` to withdraw.
/// If `id` is `None`, it returns the allowance `Balance::MAX` for all tokens of `owner`.
#[ink(message)]
fn allowance(&self, owner: AccountId, operator: AccountId, id: Option<Id>) -> Balance;
/// Allows `operator` to withdraw the `id` token from the caller's account
/// multiple times, up to the `value` amount.
/// If this function is called again, it overwrites the current allowance with `value`.
/// If `id` is `None`, it approves or disapproves the operator for all tokens of the caller.
///
/// An `Approval` event is emitted.
#[ink(message)]
fn approve(&mut self, operator: AccountId, id: Option<Id>, value: Balance) -> Result<(), PSP37Error>;
/// Transfers the `value` of the `id` token from the `caller` to `to`.
///
/// On success, a `TransferSingle` event is emitted.
///
/// # Errors
///
/// Returns a `TransferToZeroAddress` error if the recipient is a zero account.
///
/// Returns a `NotAllowed` error if the transfer is not approved.
///
/// Returns an `InsufficientBalance` error if the `caller` doesn't have enough balance.
///
/// Returns a `SafeTransferCheckFailed` error if `to` doesn't accept the transfer.
#[ink(message)]
fn transfer(&mut self, to: AccountId, id: Id, value: Balance, data: Vec<u8>) -> Result<(), PSP37Error>;
/// Transfers `amount` tokens of the token type `id` from `from` to `to`. Additional `data` can also be passed.
///
/// On success, a `TransferSingle` event is emitted.
///
/// # Errors
///
/// Returns a `TransferToZeroAddress` error if the recipient is a zero account.
///
/// Returns a `NotAllowed` error if the transfer is not approved.
///
/// Returns an `InsufficientBalance` error if `from` doesn't have enough balance.
///
/// Returns a `SafeTransferCheckFailed` error if `to` doesn't accept the transfer.
#[ink(message)]
fn transfer_from(
&mut self,
from: AccountId,
to: AccountId,
id: Id,
amount: Balance,
data: Vec<u8>,
) -> Result<(), PSP37Error>;
}
3. Struct
pub struct Addr(String);
pub struct Coin {
pub denom: String,
pub amount: u128,
}
pub struct Cw20Coin {
pub address: String,
pub amount: u128,
}
pub struct TransferMsg {
/// The local channel on which to send the packets.
pub channel: String,
/// The remote address to which the data should be sent.
/// Do not use HumanAddress as it might have a different Bech32 prefix than we use,
/// and it cannot be validated locally.
pub remote_address: String,
/// The duration (in seconds) for which the packet remains alive. If not specified, use default_timeout.
pub timeout: Option<u64>,
/// An optional memo to add to the IBC transfer.
pub memo: Option<String>,
}
pub enum Amount {
Native(Coin),
Cw20(Cw20Coin),
}
impl Amount {
pub fn from_parts(denom: String, amount: u128) -> Self {
if denom.starts_with("cw20:") {
let address = denom.get(5..).unwrap().into();
Amount::Cw20(Cw20Coin { address, amount })
} else {
Amount::Native(Coin { denom, amount })
}
}
pub fn cw20(amount: u128, addr: &str) -> Self {
Amount::Cw20(Cw20Coin {
address: addr.into(),
amount: amount,
})
}
pub fn native(amount: u128, denom: &str) -> Self {
Amount::Native(Coin {
denom: denom.to_string(),
amount: amount,
})
}
}
impl Amount {
pub fn denom(&self) -> String {
match self {
Amount::Native(c) => c.denom.clone(),
Amount::Cw20(c) => "cw20:".to_owned() + c.address.as_str(),
}
}
pub fn amount(&self) -> u128 {
match self {
Amount::Native(c) => c.amount,
Amount::Cw20(c) => c.amount,
}
}
/// Convert the amount into u64.
pub fn u64_amount(&self) -> Result<u64, Error> {
Ok(self.amount().try_into().unwrap())
}
pub fn is_empty(&self) -> bool {
match self {
Amount::Native(c) => c.amount == 0,
Amount::Cw20(c) => c.amount == 0,
}
}
}
4. Errors
pub enum Error {
/// StdError
StdError,
/// PaymentError
PaymentError,
/// AdminError
AdminError,
/// #[error("Channel doesn't exist: {id}")]
NoSuchChannel { id: String },
/// #[error("Didn't send any funds")]
NoFunds {},
/// #[error("Amount larger than 2**64, not supported by ics20 packets")]
AmountOverflow {},
/// #[error("Only supports channel with ibc version ics20-1, got {version}")]
InvalidIbcVersion { version: String },
/// #[error("Only supports unordered channel")]
OnlyOrderedChannel {},
/// #[error("Insufficient funds to redeem voucher on channel")]
InsufficientFunds {},
/// #[error("Only accepts tokens that originate on this chain, not native tokens of remote chain")]
NoForeignTokens {},
/// #[error("Parsed port from denom ({port}) doesn't match packet")]
FromOtherPort { port: String },
/// #[error("Parsed channel from denom ({channel}) doesn't match packet")]
FromOtherChannel { channel: String },
/// #[error("Cannot migrate from different contract type: {previous_contract}")]
CannotMigrate { previous_contract: String },
/// #[error("Cannot migrate from unsupported version: {previous_version}")]
CannotMigrateVersion { previous_version: String },
/// #[error("Got a submessage reply with unknown id: {id}")]
UnknownReplyId { id: u64 },
/// #[error("You cannot lower the gas limit for a contract on the allow list")]
CannotLowerGas,
/// #[error("Only the governance contract can do this")]
Unauthorized,
/// #[error("You can only send cw20 tokens that have been explicitly allowed by governance")]
NotOnAllowList,
}
